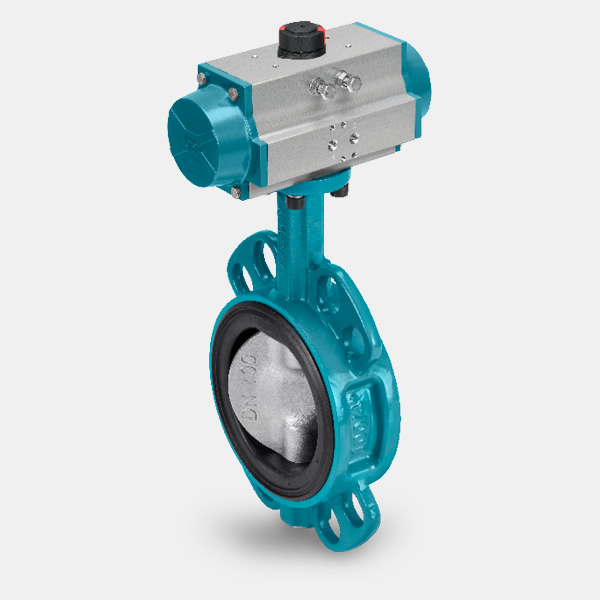

GEMÜ R481 Pneumatic metal butterfly valve

The GEMÜ R481 Victoria soft seated metal butterfly valve has a metal actuator and is pneumatically operated. Normally Closed, Normally Open and Double Acting control functions are available. Various pneumatic actuators are available. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions. Soft-sealing, centrally mounted butterfly valve.

Key features
Low torques thanks to PTFE coated bushes
Bubble tight sealing, in accordance with EN 12266-1/P12, leak rate A
Liner material is easy to read when installed
Sleek disc design for higher Kv values
Robust body coating comparable to ISO 12944-6 C5
Various actuator types can be selected
Optional accessories are installed, set and tested so they are ready for operation

GEMÜ butterfly valves are widely used in water treatment systems in industries such as chemical and power plants. The standard configuration is a centerline butterfly valve, but double and triple eccentric butterfly valves are also available upon request. They can also be used with components such as position indicators, positioners, and process controllers to achieve various control functions.
